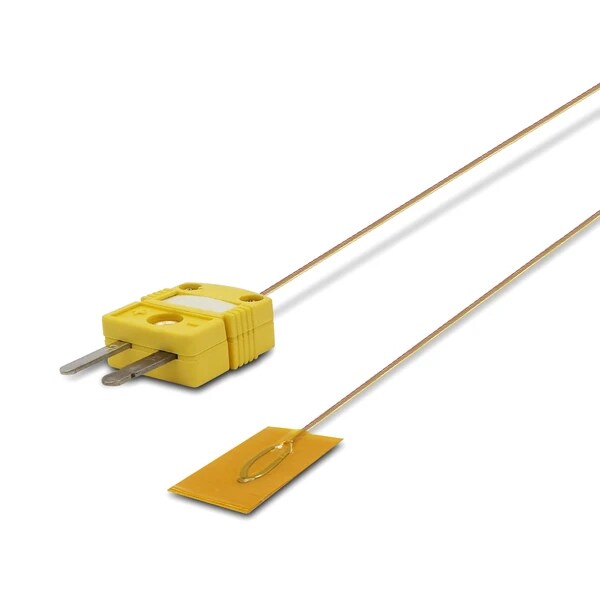

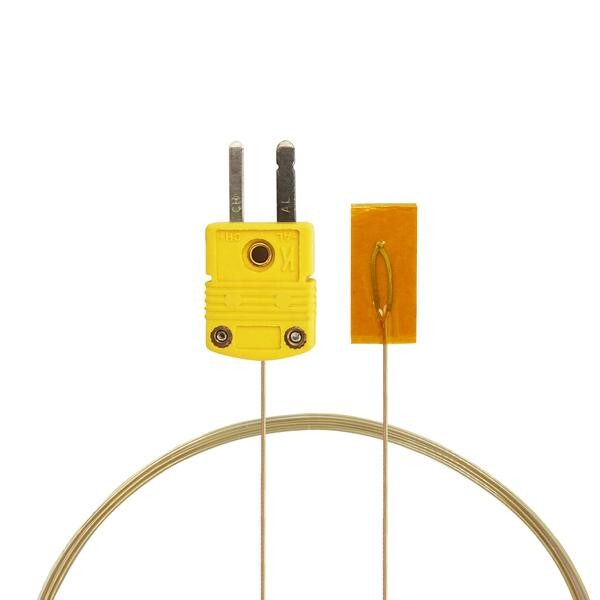

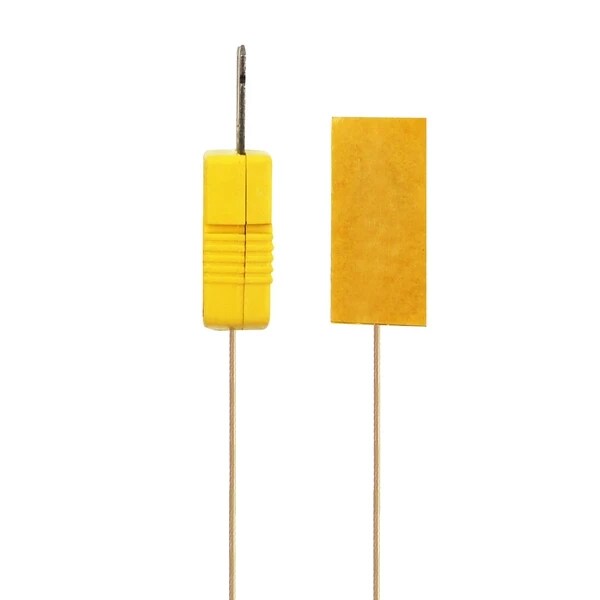

🟡 K-Type Flat Surface Contact T/C

(0)No Reviews yet
$39.45
QuantityPrice
1 – 2$39.45
3 – 5$37.48
6 – 9$35.51
10 – 49$33.53
50 – 99$31.56
100 +$29.59
SKU: TIPTCK502
Provided: Each

Fast-response surface probe for accurate contact temperature measurement

──────────────────────────

Quick Specs

🌡 Thermocouple Type: 🟡 Type K (Chromel / Alumel)
🌡 Temperature Range: 32°F to 392°F (0°C to 200°C)
🎯 Accuracy: Typical Type K performance (instrument dependent)
⏱ Time Constant: 0.1 sec
⚡ Response Time: 0.5 sec
🧵 Lead Wire: 24 AWG Teflon-insulated cable
📏 Cable Length: 39.37" (1000 mm)
🔌 Connector: Miniature Type K plug (attached)
🔩 Contact Style: Flat surface contact sensor

──────────────────────────

📦 Browse the related products below to explore compatible meters, data loggers, and accessories that integrate seamlessly with this sensor.


🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP (847-8367) for expert guidance.

Teflon Jacket, 24 Ga. with Mini Plug attached.

IN STOCK

Current Stock: 2

Notable Features

Back

✅ Fast response for surface temperature measurements
✅ Flat contact design improves thermal transfer accuracy
✅ Durable Teflon jacket resists heat and chemicals
✅ Mini plug allows quick connection to meters and loggers
✅ Ideal for plates, housings, pipes, and flat components
✅ Compatible with all Type K thermocouple instruments

──────────────────────────

K-Type Thermocouple Flat Surface Contact. Wire Length: 39.37" (1000mm)
Teflon Jacket, 24 Ga. with Mini Plug attached.

Back
Thermocouple Type: Thermocouple
Wire Material: Teflon
Wire Gauge: 24 Ga.
Wire Length: 39.37 Inches
Plug Size: Miniature
Time Constant: Time constant 0.1 sec. Response time 0.5 sec.
Back
  • K-Type Thermocouple Flat Surface Contact.
  • Wire Length: 39.37" (1000mm)
  • Teflon Jacket, 24 Ga. with Mini Plug attached.
