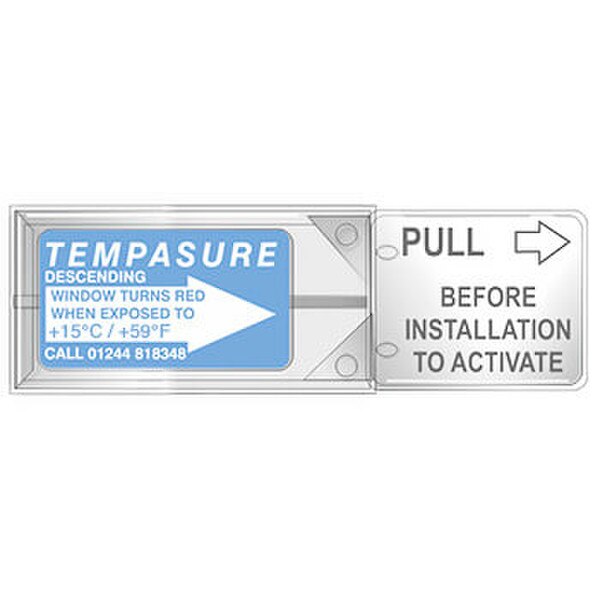

Non-Reversible Tempasure Label
Non-Reversible Disk Records a Descending "COLD" temperature (Minimum 59°F/15°C).
Tempasure with self-adhesive backing. To activate the operator must condition the label ABOVE the desired temperature and pull the activation tab. The unit will clearly show a red window when the product to which it is attached has experienced a temperature BELOW its rating.
| Type of Sensor: | Bi-Metalic / Descending |
| Temperature Sensing Range: | 15°C (59°F) |
| Temperature Accuracy: | +/- 2°F (+/- 1°C) typical |
| Temperature Scale: | °F and °C |
| Dimensions: | L x W x Thickness: 1.38" x .069" x .22" |
| Weight: | .1 |
| Calibration Available: | Certificate of Conformance ( $ Extra ) |
| Adhesive: | Yes |
| Number of Events: | 1 |
| Color Change: | Permanent |
| Shelf Life: | 5 Years from Activation |
| Adhesive Type: | 3M |
- (20)Tempasure Indicators
- Instructions
- Expert Technical Support

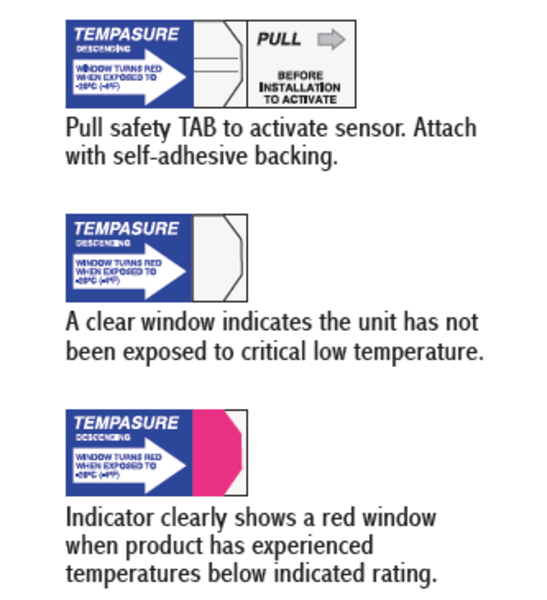

- Allow sensor to stabilize at product temperature
- Pull safety TAB to activate sensor
- Remove release liner and attach with self adhesive backing
- A clear window indicates the unit has not been exposed to critical low temperature.
- Indicator window shows red when exposed to a low temperature that is at or below its rating
