Thermochromic Vinyl Flex Sheet (Most Popular)
Thermochromic vinyl material that is coated with liquid crystal and then covered with a clear polyester over laminate. These flexible sheets can be cut to size and used to create a touch sensitive color changing graphic that changes from black through the visible spectrum in between the temperature range of 25°C to 30°C (77°F to 86°F).
NOTE: Due to dimensions of this product FREE SHIPPING does not apply.

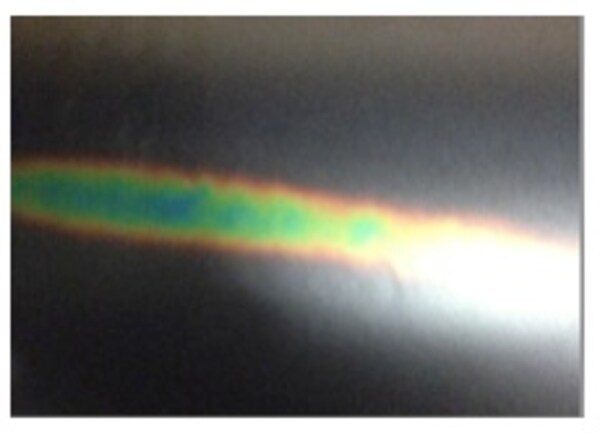

The black to red color change occurs at 25°C, the green color starts at 26°C, the blue color starts at 30°C and the clearing point when the film changes back to black is 34°C. The colors observed depend not only on temperature but also on the viewing angle.
|Type of Sensor:||Reversible Thermochromic Sheet|
|Temperature Sensing Range:||Changes Color Between: 25°C ~ 30°C|
|Temperature Accuracy:||+/- 2°F (+/- 1°C) typical|
- 50" wide roll
- Call 1-800-TIP-TEMP ask for Technical Sales - Specify Length.
- We will respond with a written quote when we know the specifics.
- Expert Technical Support
