Thermochromic Vinyl Flex Sheet

(0)No Reviews yet
QuantityPrice
SKU: TLCSEN456
Provided: Each
Changes Color Between: 25°C ~ 30°C
Visually monitor temperature changes to the touch.
Thermochromic Vinyl Sheet - BLUE 50"W x  XXX" L
Please Specify Roll Length In Inches _______"
  • 50" wide roll cut to length (minimum 12") or sold in sheets.
  • Total Thickness: With adhesive: 175-225 microns
  • Color Change: BLUE to the visible spectrum (red green blue) with increasing temperature and finally to black again.
  • Construction: Vinyl film with polyester over laminate adhesive backed with protective backing or without adhesive backing
  • Custom Die Cutting available....please inquire.

Special Order

Notable Features

Back

NOTE: Due to dimensions of this product FREE SHIPPING does not apply.

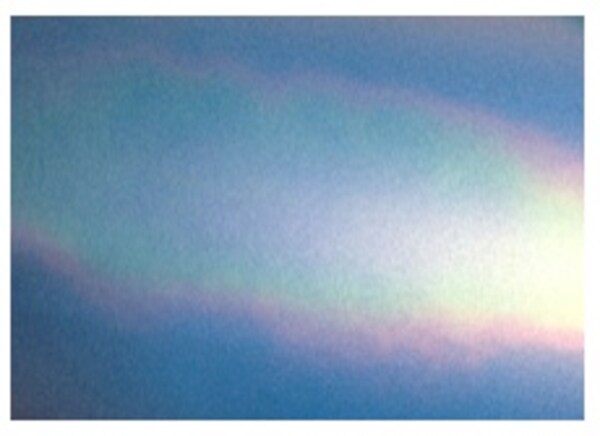

Thermochromic vinyl material that is coated with liquid crystal and then covered with a clear polyester over laminate. These flexible sheets can be cut to size and used to create a touch sensitive color changing graphic that changes from black through the visible spectrum in between the temperature range of 25°C to 30°C (77°F to 86°F).

The black to red color change occurs at 25°C, the green color starts at 26°C, the blue color starts at 30°C and the clearing point when the film changes back to black is 34°C. The colors observed depend not only on temperature but also on the viewing angle.

Back
Type of Sensor: Reversible Thermochromic Sheet
Temperature Sensing Range: Changes Color Between: 25°C ~ 30°C
Temperature Accuracy: +/- 2°F (+/- 1°C) typical
Adhesive: No
Color Change: Reversible
Back
  • 50" wide roll
  • Call 1-800-TIP-TEMP ask for Technical Sales - Specify Length.
  • We will respond with a written quote when we know the detailed specifics.
  • Expert Technical Support
