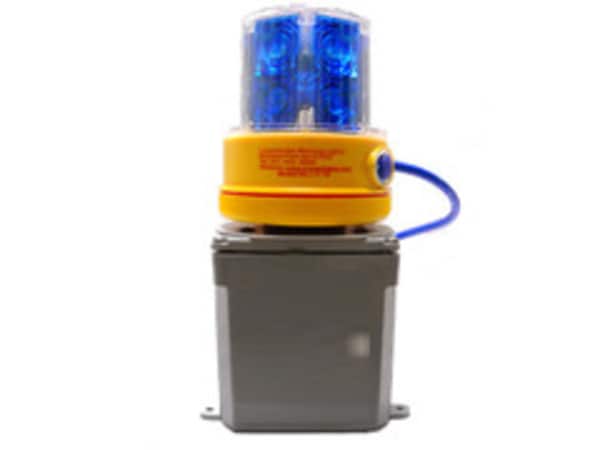

Freeze Warn Ice-Alert Flashing Light
Freezing Ice Warning Alert System 360° Visibility. Includes (12) super bright LED’s with individual magnifying diffusers. Internal selector switch for flashing light or steady on. Water tight design, adjustable settings from 30°-70° F, over 400 flashing hours, over 1,000 feet visibility at night, thermostat enclosed in watertight flange base enclosure. Ideal for parking lots, walkways, outside door entrances, and driveways. Anywhere water may collect and ice may develop causing dangerous road and walking conditions. Voltage: 3 VDC Flash Rate:60 double flashes per min. Lamp/Bulb: (12) super bright Blue LED’s/ 100,000 hours Power Source:(2) D-Cell batteries Lens:Polycarbonate – clear Battery Life:(2) D-Cell 400 hours (flashing) Base:ABS Overall Height:10” Brightness/Visibility:5-6cd / 360° visibility – over 1,000 ft. Weight:1.36 lbs (with batteries) Diameter:Lens: 2” Thermostat: Enclosed thermostat with adjustable settings 30°; to 70°; F, with holes for flange mounting or surface mounting
| Type of Sensor: | Bi-Metal Coil |
| Temperature Sensing Range: | 30°F to 70°F ( -1°C to 21°C ) |
| Temperature Accuracy: | +/- 4°F (+/- 2°C) typical |
| Temperature Resolution: | 1° |
| Temperature Scale: | °F and °C |
| Min/Max Memory: | No |
| Dimensions: | 10" H x 5"W x 3.75"D |
| Weight: | 3.25 lbs (with batteries) |
| Calibration Available: | Please Call to Discuss |
| Power: | (2) "D" Batteries ( Included ) |
| Battery Life: | 400 Hours ( ON ) |
| Special Notes: | Internal selector switch for flashing light or steady on. |
- Battery Powered Freeze Warn Ice-Alert
- Adjustable Dial Thermostat Pre-Set to 32°F
- (2) "D" Batteries
- Instructions
- Expert Technical Support
| Flash Rate: | 60 double flashes per min. |
| Lamp/Bulb: | (12) super bright Blue LED’s/ 100,000 hours |
| Lens: | Polycarbonate – clear |
| Base: | ABS |
| Overall Height: | 10” ( 10" H x 5"W x 3.75"D ) |
| Brightness/Visibility: | 5-6cd / 360° visibility – over 1,000 ft. |
1. To install new batteries remove the beacon from the weather sealed box by lifting and titling the beacon gently.
4. Once you have tested the thermostat and found the light operational, reset the thermostat to 35 degrees by turning the dial.
5. Lastly, reattach the top lid by screwing in the (4) screws to each corner of the light. Your Ice Alert is now ready to be deployed for service.
2. Unscrew the bottom lid of the beacon and install (2) new D-CELL batteries and select the mode you desire:flashing or steady-burn (Note: The steady-burn will reduce battery life to 200 hours.)
4. Once you have tested the thermostat and found the light operational, reset the thermostat to 35 degrees by turning the dial.
5. Lastly, reattach the top lid by screwing in the (4) screws to each corner of the light. Your Ice Alert is now ready to be deployed for service.
