Ambient Temperature Logger with Graphic Display
Ambient Temperature Logger with Graphic LCD Display

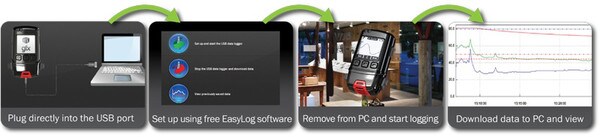

Using internal probe to measure temperatures from -22 to +176°F with resolution of 0.1°C, standalone EL-GFX-1 can store 250,000+ readings and incorporates highly visible LEDs as well as audible alarm. LCD shows real-time readings, graphs, and current status, while micro USB port enables PC-based setup and data download. Users can start, stop, and restart datalogger using on-screen menus, and temperature-triggered start conserves memory by recording only when sensors reach set-point.
Using internal probe to measure temperatures from -22 to +176°F with resolution of 0.1°C, standalone EL-GFX-1 can store 250,000+ readings and incorporates highly visible LEDs as well as audible alarm. LCD shows real-time readings, graphs, and current status, while micro USB port enables PC-based setup and data download. Users can start, stop, and restart datalogger using on-screen menus, and temperature-triggered start conserves memory by recording only when sensors reach set-point.
| Type of Sensor: | Thermistor |
| Temperature Sensing Range: | -22°F ~ 176°F (-30°C ~ 80°C) |
| Temperature Accuracy: | +/- 1°F (+/- 0.5°C) typical |
| Temperature Resolution: | 0.1° |
| Temperature Scale: | °F and °C |
| Min/Max Memory: | Yes |
| Dimensions: | 3.46"H x 1.91"W x 1.20"D |
| Weight: | .4 |
| Calibration Available: | Yes (purchased separately) |
| Battery Life: | 3 - 6 Months (typical) |
| IP Rating: | IP 67 |
| Sampling Rate: | Once a sec to every 12 hours |
| Data Points: | 250,000+ readings |
| Exportable Data: | Yes |
| Recording Rate: | 1 sec to every 12 hours |
| Display: | LCD |
| Requires Software: | YES |
| Software Type: | Windows 10, 8, 7 (32-bit and 64-Bit Versions) |
| Network Connectivity: | USB |
| WIFI Network Compatibility: | N/A |
- Temperature Data Logger with Graphic LCD Display
- Micro USB Cable
- Mounting Clip
- (2) 1/2 "AA" Lithium Batteries
- PC Compatible Software ( FREE Download)
- Expert Technical Support
