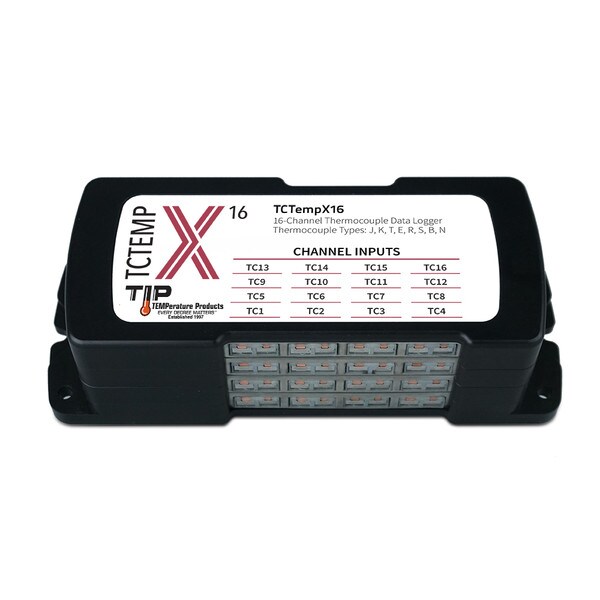

16 Channel Thermocouple Data Logger
The TCTempX Series includes 4, 8, 12 and 16-channel thermocouple-based temperature data loggers with a reading rate of up to 4 Hz, ideal for a variety of applications, whether it is remote temperature monitoring or multiple points in a central location.
This device simultaneously measures and records up to 2,096,128 readings, and users can disable channels to maximize memory capacity. For easy identification, each channel can be named with up to a ten-digit title.
In addition, the TCTempX Series features individual cold junction compensation for each channel providing increased accuracy and response time, and if a probe is removed or severed during logging, the software automatically annotates the data.
The TCTempX Series is compatible with the latest Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
This device simultaneously measures and records up to 2,096,128 readings, and users can disable channels to maximize memory capacity. For easy identification, each channel can be named with up to a ten-digit title.
In addition, the TCTempX Series features individual cold junction compensation for each channel providing increased accuracy and response time, and if a probe is removed or severed during logging, the software automatically annotates the data.
The TCTempX Series is compatible with the latest Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
| Temperature Sensing Range: | Operating Temp: -20ºC ~ 60ºC (-4ºF ~140ºF) |
| Operating Temperature Range: | -20 ºC to +60 ºC (-4 ºF to +140 ºF), 0 %RH to 95 %RH non-condensing |
| Temperature Scale: | °F or °C |
| Dimensions: | 2.70 in x 7.25 in x 2.14 in (65.6 mm x 184.2 mm x 54.4 mm) |
| Power: | Battery |
| Battery Life: | 18 Months (typical) |
| Special Notes: | Approvals: CE |
| Number of Sensors: | 16 |
| Data Points: | 2,096,128 (131,008 readings per channel) |
| Exportable Data: | Yes |
| Recording Rate: | 4 Hz up to 1 reading every 24 hours |
| Display: | None |
| Requires Software: | Yes |
| Software Type: | Windows |
| Network Connectivity: | USB |
- (1) 16 Channel Thermocouple Data Logger
- *Thermocouple sensors additional
