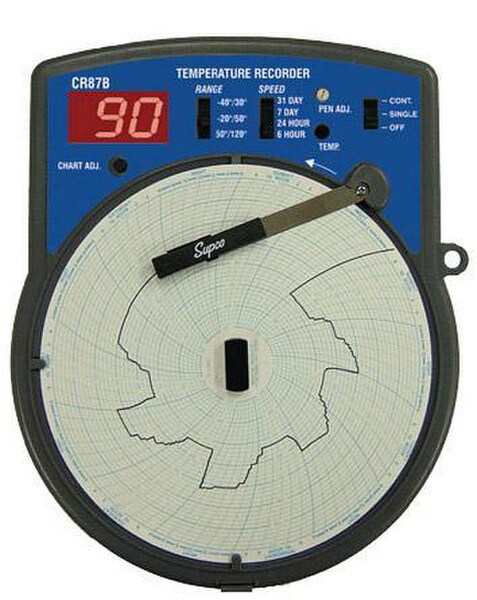

Temperature Chart Recorder (Displays °F) (220/240V)

(0)No Reviews yet
$615.00 $684.00
Provided: Each
CR87B220F: Temp Range: -40 ~ 120°F
Temperature Chart Recorder with remote sensor. ( Can be extended )
User selectable 6 hour, 24 hour, 7 Day and 31 Days chart speeds. NIST Certificate Available.

Notable Features

The Newly Designed CR87B220F Temperature Recorder with remote sensor employs an advanced micro-controller design that enables this versatile instrument to accurately measure and record temperatures in air, gas, liquids, powders, solids, and semi-solids. Recordings can be made from any distance up to 100 feet away by using optional long-length thermocouple wire. Two selector switches located on the face panel allow for the recording of 3 different temperature ranges at 4 different recording speeds.

 Applications: * Food Storage * Environment, Energy Management * HVAC, Refrigeration Maintenance * General Laboratory Monitoring * Computer Room Monitoring * Ovens, Dryers, Paint Booths

  • Part Number: SUPREC006
  • Display in Degree Fahrenheit
  • Advanced micro-controller design
  • Large led digital temperature display
  • 3 temperature ranges and 4 chart speeds
  • Front panel selectable single turn or continuous chart rotation
  • All controls are located on the front panel for fast and easy setup
  • Furnished complete with 2 cartridge pens and 60 6" diameter assorted charts
  • Power: 220 / 240V 50/60Hz
  • (8) "AA" Battery back-up. Assures normal operation during power interruptions.
  • 12 volt operation. Allows use in vehicular or marine operations
  • Sensor: 4" long submersible stainless steel probe with 15' cable. The temperature sensor is an electronic digital proprietary design for precision and very high interference immunity. It utilizes the standard RCA connector. The sensor cable may be extended with an extension cable available from TIPTEMP.
  • Convenient fold-down handle
  • Free standing or wall mounted (using existing keyhole slots located on back of case)
  • Durable polycarbonate Case cover and handle
  • 6" Chart Recorder 220 / 240V 50/60Hz (Displays °F )
  • 2 Pen Cartridges
  • Temperature Sensor 4" SS probe & 15' cable
  • Assortment of 60 charts
  • Instructions
  • Expert Technical Support
Speak with a TIPTEMP Thermal Advisor
