Temperature Chart Recorder (Displays °F)

(0)No Reviews yet
$476.97 $573.97
QuantityPrice
SKU: SUPREC004
Provided: Each
CR87B110F: Temp Range: -40 ~ 120°F

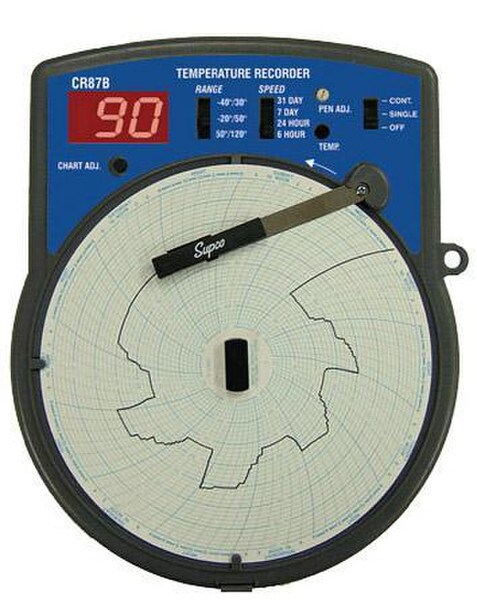

Temperature Chart Recorder with External Probe

User selectable 6 hour, 24 hour, 7 Day and 31 Days chart speeds.


Includes Assortment of 60 charts

Notable Features


The Newly Designed CR87B110F Temperature Recorder with remote sensor employs an advanced micro-controller design that enables this versatile instrument to accurately measure and record temperatures in air, gas, liquids, powders, solids, and semi-solids. Recordings can be made from any distance up to 100 feet away by using optional long-length thermocouple wire. Two selector switches on the face panel allow for recording 3 different temperature ranges at 4 different recording speeds.

Applications: * Food Storage * Environment, Energy Management * HVAC, Refrigeration Maintenance * General Laboratory Monitoring * Computer Room Monitoring * Ovens, Dryers, Paint Booths

  • Part Number: SUPREC004
  • Display in Degree Fahrenheit
  • Advanced micro-controller design
  • Large led digital temperature display
  • 3 temperature ranges and 4 chart speeds
  • Front panel selectable single turn or continuous chart rotation
  • All controls are located on the front panel for fast and easy setup
  • Furnished complete with 2 cartridge pens and 60 6" diameter assorted charts
  • Power: 110/120V 50/60Hz
  • (8) "AA" Battery back-up. Assures normal operation during power interruptions.
  • 12 volt operation. Allows use in vehicular or marine operations
  • Sensor: 4" long  stainless steel probe with 15' cable.The temperature sensor is an electronic digital proprietary design for precision and very high interference immunity. It utilizes the standard RCA connector. The sensor cable may be extended with an extension cable available from TIPTEMP.
  • Convenient fold-down handle
  • Free standing or wall mounted (using existing keyhole slots located on back of case)
  • Durable polycarbonate Case cover and handle
  • Chart Recorder 110/120V 50/60Hz
  • 2 Pen Cartridges
  • Sensor: 4" SS Probe with 15' cable
  • Assortment of 60 charts
  • Instructions
  • Expert Technical Support
Note: (8) AA Batteries are purchased separately.

Speak with a TIPTEMP Thermal Advisor

Chart Paper has various temperature ranges

The sensor cable may be extended with an extension cable available from TIPTEMP.
