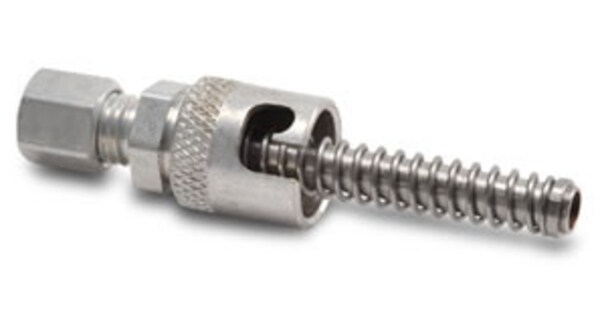

Adjustable Bayonet Fitting
Adjustable Bayonet Fitting: ABF-18 Spring loaded bayonet fitting for 1/8", Stainless ferrule, 2.875" length
Cap diameter at the knurling - 0.575"
Hex across points - 0.5"
Hex across flats - 0.440"
Compression nut across points - 0.420"
Compression nut across flats - 0.378"
The spring travel is about 0.75"
The overall length is approximately 2.375"
