6 Position Multipoint K Thermocouple

(0)No Reviews yet
Complete this form to customize your sensor
Submit the Form to EveryDegreeMatters@TipTemp.com
We will respond with our detailed Estimate.

Notable Features

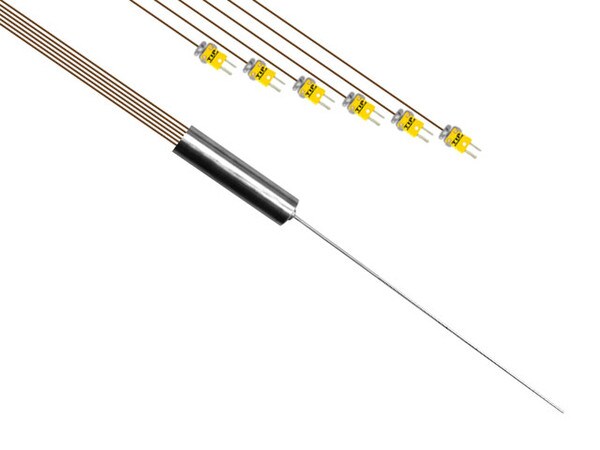

TC16-K6-SS-18-U-TBD-TT-24-06-M-CC Multipoint type K thermocouple, stainless steel sheath, 1/8" dia x TBD" inches long below transition with six 6" lengths of teflon insulated flat pair cable terminated in large plug with cable clamp. Six ungrounded junctions positioned at 0", 1", 2", 3", 4" & 5" inches.

Complete this form to customize your sensor


Thermocouple Type: Thermocouple
Sheath Material: Stainless Steel
Sheath Diameter: 0.125
Sheath Length: TBD
Transition Diameter: TBD
Transition Length: TBD
Wire Material: Teflon
Wire Gauge: 24 Ga
Wire Length: 36"
Plug Size: Mini Plug
Special Limits: Upon Request
Number of Measuring Points: SIX Points
