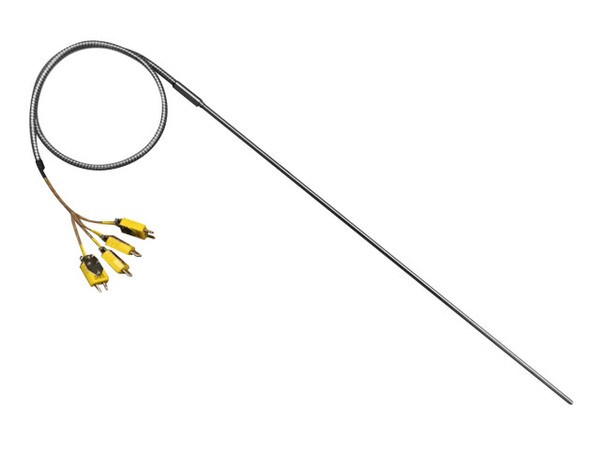

MultiPoint "K" Thermocouple 4 Points
TC16-K4-SS-14-U-TBD-ARCA-24-GG-36-M MultiPoint TC type "K" with 2 T/C's @ 0, 2 T/C's @ 6 3/4". Sheath dimensions 1/4" dia x ??" long with transition and 36" stainless steel flexible armor with fiber glass insulated wire terminated in large thermocouple plug. Add shrink wrap to individual leadwires at exit of transition Must have ID tag containing part number
Complete this form to customize your sensor
Complete this form to customize your sensor
| Thermocouple Type: | Thermocouple |
| Sheath Material: | Stainless Steel |
| Sheath Diameter: | 0.250 |
| Sheath Length: | TBD |
| Transition Diameter: | 0.375" |
| Transition Length: | 1.25" |
| Wire Material: | SSOB Fiberglass |
| Wire Gauge: | 24 Ga. |
| Wire Length: | 36" |
| Plug Size: | Large Plug |
| Max Temp: | 1960ºF ( 1060ºC ) |
| Special Limits: | Upon Request |
| Number of Measuring Points: | FOUR |
