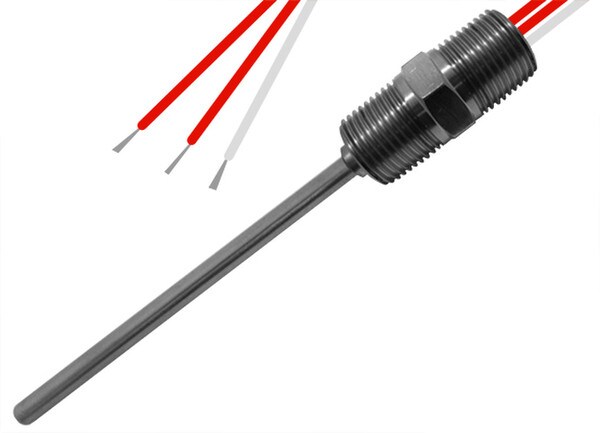

Replacement RTD 100Ω Sensor
Replacement RTD connects the Screw top head connection. 100 ohm 3 wire 1/4 O.D. SS material, 5 1/4" long with 1/2 x 1/2 fitting and 3" Teflon leads
| Type of Sensor: | RTD |
| Temperature Sensing Range: | -90°F ~ 500°F ( -70°C ~ 260°C ) |
| Temperature Accuracy: | +/- 1°F (+/- 0.5°C) typical |
| Weight: | .2 |
| Sheath Material: | Stainless Steel |
| Sheath Diameter: | 0.250 |
| Sheath Length: | 5.25 |
| Wire Material: | Teflon |
| Wire Length: | 3" leads |
