⚪ RTD Thermowell Assembly
✅ Custom-built platinum PT100 RTD assembly
✅ Optional head-mounted 4–20mA transmitter
✅ Spring-loaded design for reliable contact
✅ Stainless steel thermowell construction
✅ Scaled transmitter output to your specifications
✅ Ideal for industrial process monitoring
✅ Built to order — call to discuss configuration
──────────────────────────

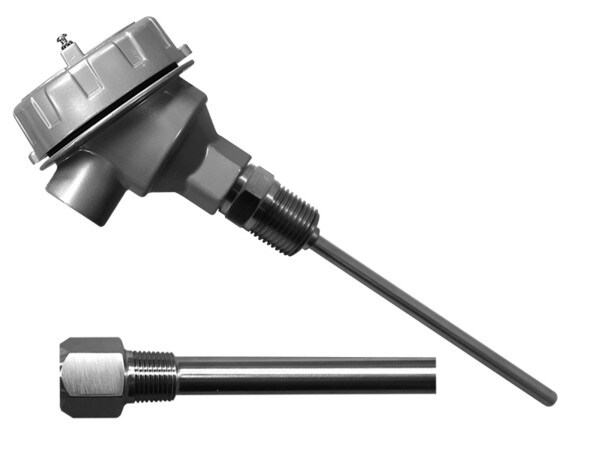

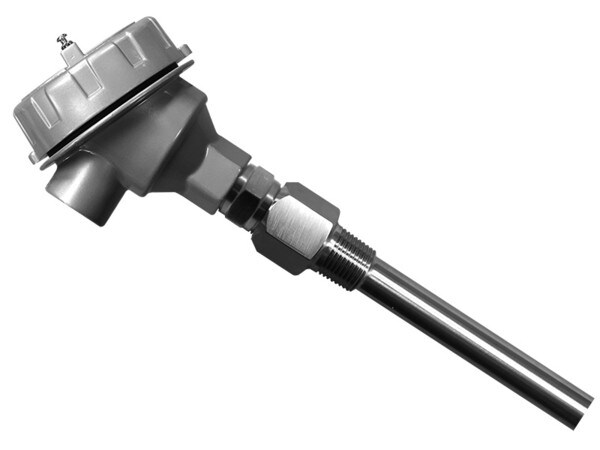

RTD62-100L-3-SL-0-TW9-304SS-4W/APAQ-HRFX I.S. Platinum PT100, head mounted assembly with transmitter & thermowell. Sensor: PT100, 3 wire, stainless steel sheath, 1/4" dia. x approx. 5.5" long spring loaded. Thermowell: 304 stainless steel all welded construction, 0.260 bore, U length 4" inches below 1/2"NPT process thread with 1/2" NPT instrument thread with a 1/2" NPT x 1/2" NPT nipple into an explosion proof terminal head. Transmitter: APAQ-HRFX I.S. temperature transmitter. Input: 3 wire PT100 RTD Output: 4~20mA Range: -20°C to 80°C Approval: CENELEC, FM, Intrinsically Safe Special Order Items are non-refundable
| Type of Sensor: | RTD 100Ω 3 Wire |
| Temperature Sensing Range: | -20°C to 80°C |
| Temperature Accuracy: | +/- 0.6°F (+/- 0.3°C) typical |
| Temperature Resolution: | 0.001° |
| Temperature Scale: | °F or °C |
| Min/Max Memory: | No |
| Weight: | 2.2 lbs. |
| Calibration Available: | Yes (purchased separately) |
| Thermocouple Type: | RTD |
| Sheath Material: | Stainless Steel |
| Sheath Diameter: | 0.250 |
| Sheath Length: | 5.5 |
| Transition Diameter: | Spring Loaded |
