"T" Thermocouple with Plug & Jack
Details

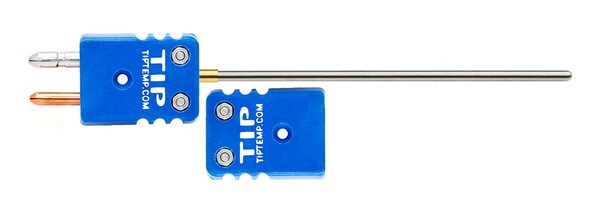

TC10-T-SS-116-U-18 Single type T thermocouple assembly. Stainless steel sheath, 1/16" dia. x 18" inches long below large type T thermocouple plug. Ungrounded junction insulated.
Specs
| Temperature Sensing Range: | -319 ~ 698°F (–195 ~ 370°C) |
| Temperature Accuracy: | +/- 1°F (+/- 0.5°C) typical |
| Special Notes: | Ungrounded Isolated Junction |
| Thermocouple Type: | Thermocouple |
| Sheath Material: | Stainless Steel |
| Sheath Diameter: | 0.062 |
| Sheath Length: | 18" |
| Plug Size: | Large |
| Jack Size: | Large |
| Max Temp: | 698°F / 370°C |
