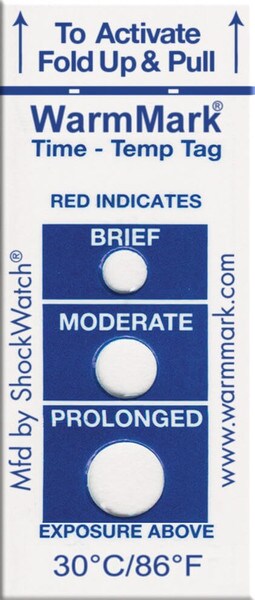

⬜⬛ WarmMark® TTI Indicator 86°F
The WarmMark® TTI Indicator permanently records when products have been exposed to temperatures above 86°F (30°C). This single-use temperature indicator provides clear visual evidence of cumulative temperature exposure, making it ideal for pharmaceuticals, medical products, laboratory samples, food shipments, and other temperature-sensitive materials requiring cold
──────────────────────────
Ideal Applications
💊 Pharmaceutical shipments
🏥 Healthcare and medical products
🧪 Laboratory samples
📦 Cold chain logistics
🍽 Food and beverage distribution
🚚 Temperature-sensitive transportation
✈️ Export and international shipping chain verification.
| Type of Sensor: | Chemical / Time Temperature |
| Temperature Sensing Range: | Activates Above 30°C/86°F |
| Temperature Accuracy: | +/- 2°F (+/- 1°C) typical |
| Temperature Scale: | °F and °C |
| Min/Max Memory: | No |
| Dimensions: | L x W x thickness 4.6 x 1.9 x 0.15 cm (1.81 x 0.75 x 0.06 in.) |
| Weight: | 0.0025 lb. |
| Calibration Available: | Certificate of Conformance ( $ Extra ) |
| Adhesive: | Yes |
| Storage Conditions: | Room Temperature / Cool / Dry |

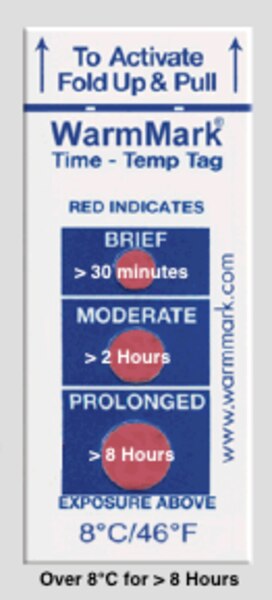

| Number of Events: | 3 Events: Brief 30 Min, Moderate 2 Hrs, Prolonged 8 Hrs. |
| Color Change: | Permanent |
| Shelf Life: | 1 Year from Date of Sale |
| Adhesive Type: | 3M |
Minimum Order of (50) WarmMark Labels. Used in transportation and long term storage.
Arming & Use:

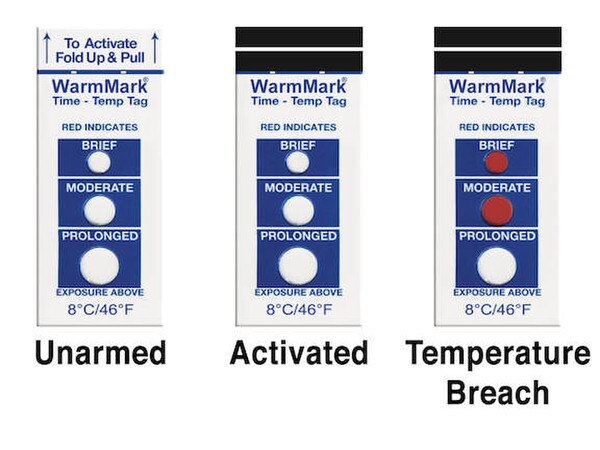

1. *All WarmMark breach window(s) should be white prior to arming the device.
2.Before arming, the WarmMark indicator should be placed in an environment at least 5°C (9°F) below the WarmMark’s activation threshold temperature for a minimum of 30 minutes. (For WarmMark Duo, the indicator should be at least 5°C (9°F) or cooler for a minimum of 30 minutes.)
3. To arm the WarmMark indicator, fold up and pull out the indicator’s activation tab until the tab and barrier film have been completely removed.
4. If using a WarmMark indicator with an activation threshold temperature below the ambient temperature, immediately place the indicator in the environment to be monitored to avoid activation.
5. Remove the adhesive liner from the WarmMark and adhere the indicator to a clean, dry surface.
1. *All WarmMark breach window(s) should be white prior to arming the device.
2.Before arming, the WarmMark indicator should be placed in an environment at least 5°C (9°F) below the WarmMark’s activation threshold temperature for a minimum of 30 minutes. (For WarmMark Duo, the indicator should be at least 5°C (9°F) or cooler for a minimum of 30 minutes.)
3. To arm the WarmMark indicator, fold up and pull out the indicator’s activation tab until the tab and barrier film have been completely removed.
4. If using a WarmMark indicator with an activation threshold temperature below the ambient temperature, immediately place the indicator in the environment to be monitored to avoid activation.
5. Remove the adhesive liner from the WarmMark and adhere the indicator to a clean, dry surface.
The WarmMark should be located where it will be visible to the receiver of the monitored shipment. The WarmMark can be adhered directly to the product being monitored or located inside the packaging.
