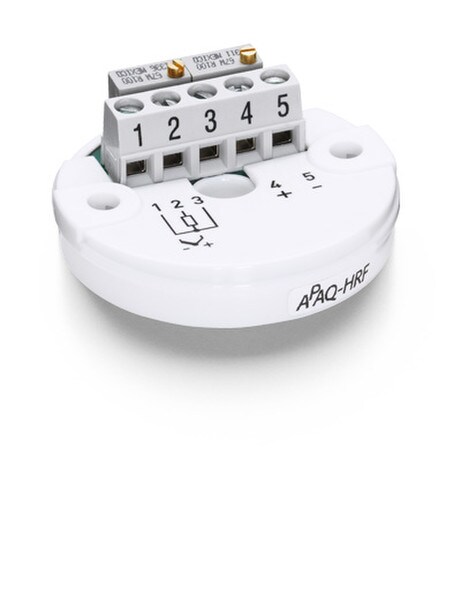

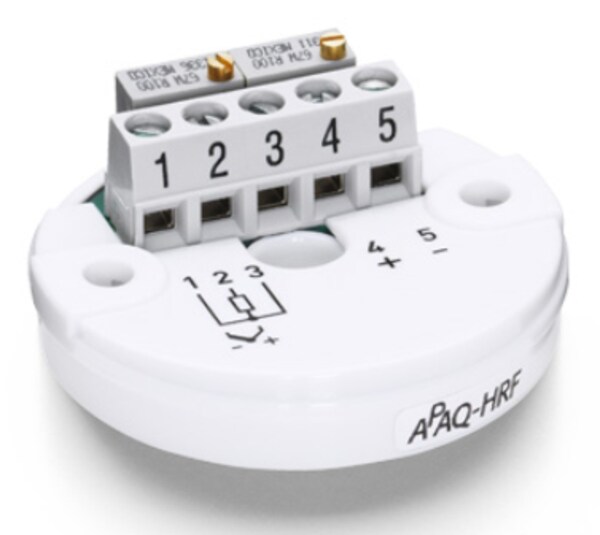

Inor APAQ-H Temperature Transmitter
The Inor APAQ-H temperature transmitter is an analog, two-wire, in-head transmitter that has selectable ranges for Pt100 and selectable types and ranges for thermocouple inputs. In-head mountings are available in DIN B or larger connection heads. Designed for highest reliability and cost-efficiently manufactured, the Inor APAQ-H temperature transmitter combines attractive pricing with high quality and excellent industrial performance.
The Inor APAQ-H temperature transmitter features a "low profile" housing, with its protected electronics, which is extremely durable and facilitates easy connections and adjustments.
The Inor APAQ-HRF temperature transmitter is adjustable for different Pt100 ranges in both °C and °F and provides a temperature linear output. The Inor APAQ-HCF temperature transmitter covers five different thermocouple types and is continuously adjustable and provides a voltage linear output. Adjustments are made with solder pads and potentiometers.
Intrinsically safe versions, the Inor APAQ-HRFX (Pt100) and APAQ-HCFX (thermocouple) temperature transmitters, are available with FM/CSA approvals.
The Inor APAQ-H temperature transmitter features a "low profile" housing, with its protected electronics, which is extremely durable and facilitates easy connections and adjustments.
The Inor APAQ-HRF temperature transmitter is adjustable for different Pt100 ranges in both °C and °F and provides a temperature linear output. The Inor APAQ-HCF temperature transmitter covers five different thermocouple types and is continuously adjustable and provides a voltage linear output. Adjustments are made with solder pads and potentiometers.
Intrinsically safe versions, the Inor APAQ-HRFX (Pt100) and APAQ-HCFX (thermocouple) temperature transmitters, are available with FM/CSA approvals.
- Part number: INOSEN012
- Mounts inside connection head of temperature sensor/DIN B or larger
- Supports Thermocouple Types: J, L, T, K, N & RTD pt100
- RTD: ±0.15% of span; T/C: ±0.5% to ± 1.0% of span
- Sensor burn-out detection with selectable action upscale or downscale
- Accurate temperature measurement; excellent EMC performance
- Adjustable for different Pt100 ranges in both °C and °F
- Provides a temperature linear output
- Continuously adjustable and provides voltage linear output
- Flat design gives easy access to terminals and adjustments
- High load capacity
- Two-wire temperature transmitters using SMD techniques for high reliability
- ApprovalsATEX; CSA; FM
- INOR Programmable RTD or T/C Transmitter
- Expert Technical Support
- Scalable with solder jumpers and potentiometers
- Temperature linear output signal (APAQ-HRF/-HRFX)
- mV linear output (APAQ-HCF/-HCFX)
- Consistent sensor break function
- Easy connection, large center hole
- Embedded electronics for a high degree of protection
