🚨 6-Channel Environmental Monitor Alarm

(0)No Reviews yet
$408.00 $489.30
QuantityPrice
SKU: SNPALM008
Provided: Each

Web-based multi-sensor alarm system with Email, Text & SNMP alerts


Quick Specs

🌔 Temperature Range (System): 32°F ~ 122°F (0°C ~ 50°C)
🌔 Sensor Range (Inputs): –109°F ~ 168°F (–85°C ~ 76°C)
šŸ“¶ Connectivity: Web-based monitoring via Ethernet 10/100Base-T
šŸ’¬ Alerts: Email, text message, SNMP traps
🚨 Alarm Escalation: 8 programmable levels with schedules per input
šŸ“Š Data Logging: 32,000 samples; 1 sec to 1 month rate
🧪 Sensor Compatibility:
• NC/NO dry contact
• 2.8K & 10K thermistors
• 4–20 mA loop (12-bit resolution)
šŸ“ Channels: 6 universal inputs
šŸ’” Indicators: Alarm LED • Power LED • Ethernet link/activity LEDs
šŸ“ Dimensions: 5.5" Ɨ 3.25" Ɨ 1.25"
āš–ļø Weight: 0.5 lb
🌔 Operating Conditions: 0–90% RH (non-condensing)
šŸ”Œ Power: External supply (battery zone monitoring supported)

Supported Sensor Models:
• SNPSEN003: –109°F ~ 115°F (–85°C ~ 57°C)
• SNPSEN002: –20°F ~ 115°F (–30°C ~ 57°C)
• SNPSEN001: –20°F ~ 168°F (–30°C ~ 76°C)


šŸ“¦ Browse the related products below, explore similar instruments, compatible sensors, and suggested accessories that integrate with this model.

šŸ›’ Add to Cart Now or šŸ“ž Call 1-800-TIP-TEMP for expert guidance.

Notable Features

Key Features

āœ… Six universal inputs for temperature, dry contact, or 4–20 mA devices
āœ… Web-based interface for remote monitoring and configuration
āœ… Email, SMS, and SNMP alarm capabilities
āœ… Eight escalation levels for advanced notification scheduling
āœ… Onboard data logging with timestamped history
āœ… Ethernet connectivity for reliable facility integration
āœ… Ideal for server rooms, labs, equipment monitoring, and facility alarms

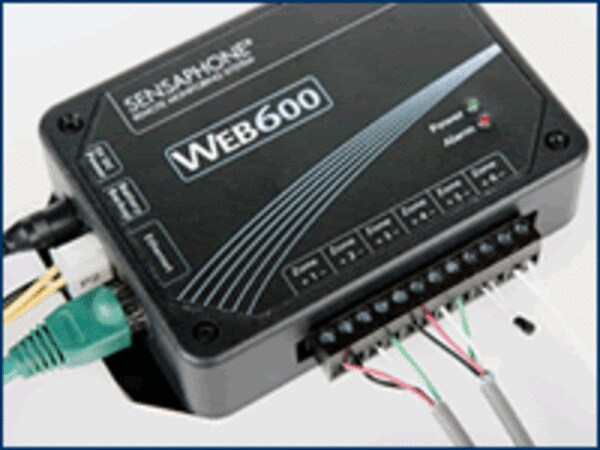

Web-Based Monitoring and Alarm Notification The NEW Web600 provides flexible web-based remote monitoring at an affordable price. Keep track of critical temperatures and other conditions and be notified immediately when current values exceed the normal range. Stores 32,000 Samples. Completely standalone and easy to use, the Web600 can be used for monitoring cold food storage, medical cold storage, and other temperature sensitive areas like computer rooms and data centers. In addition to temperature monitoring, the Web600 can also read values from humidity sensors, air quality sensors, water leak detection sensors and much more.

Sensor Inputs:
Connect up to six external sensors to monitor a variety of equipment and conditions. Each input zone can be connected to a temperature sensor, an analog transducer, or a dry contact switch.

Web Status:
Live status and history is only a webpage away. The Web600 built in web server provides quick and easy information about your monitored conditions. Even time stamped history reports are readily available online.

Alarm Notification:
When monitored conditions exceed normal values, the Web600 will notify you immediately be sending out e-mail alarm messages, and even text messages. Up to eight people can be contacted to make sure that proper action is taken.

Optional battery backup:
With the addition of the optional battery backup module, the Web600 can monitor for power failures and stay operational for three full hours while the power is out.

Web Programming:
Built in web server for easy access to programming and status. Just point your browser to the Web600ā„¢s webpage and fill in the blanks for a quick configuration.

  • Part Number: SNPALM008
  • Alarm Notification Methods: Email Text Message SNMP Traps
  • Eight (8) Alarm Escalation levels -Can schedule each input profile and alarm destination
  • Operating conditions: 0-90% RH noncondensing.
  • Web 600 Operating Temp: 0° - 50°C (32° ~ 122°F)
  • Web 600 Temp Sensor (SNPSEN003) 2.8K Range:  -109°F ~115°F ( -85°C ~ 57°C )
  • Web 600 Temp Sensor (SNPSEN002 ) 2.8K Range:  -20°F ~ 115°F ( -30°C ~ 57°C )
  • Web 600 Temp Sensor (SNPSEN001) 10K Range:  -20°F ~ 168°F ( -30°C ~ 76°C )
  • Local indicators: Alarm Status LED Power Status LED Ethernet link and Activity LED's
  • Data logging: 32000 Samples (all samples include data date and time) 1 second to 1 month sampling rate User programmable channel selection (Zones 1-6 Battery and Input Power)
  • User programmable channel selection Zones 1 6
  • Inputs: 6 Universal inputs Normally Closed / Normally Open Dry Contact 2.8K / 10K Thermistor 4-20mA Current Loop 12 Bit Resolution
  • Dimensions: 5.5" x 3.25" x 1.25"
  • Weight: 0.5lbs
  • Communication Ports: Ethernet 10/100BaseT

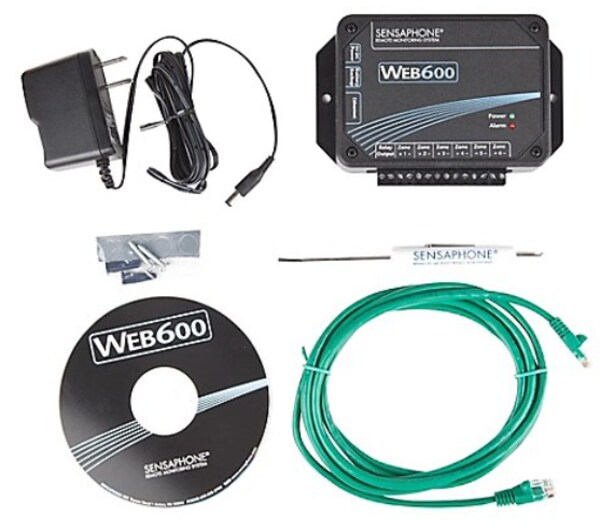

  • SELECT for 220V / 50Hz Model
  • Web 600
  • Power Supply
  • Instructions
  • Expert Technical Support
  • Sensors Sold Separately
