⚪ RTD Sensor Quick-disconnect

(0)No Reviews yet
$125.00
QuantityPrice
1 – 9$125.00
10 – 24$118.75
25 – 49$112.50
50 – 74$106.25
75 – 99$103.13
100 +$100.00
SKU: TIPRTD014P06

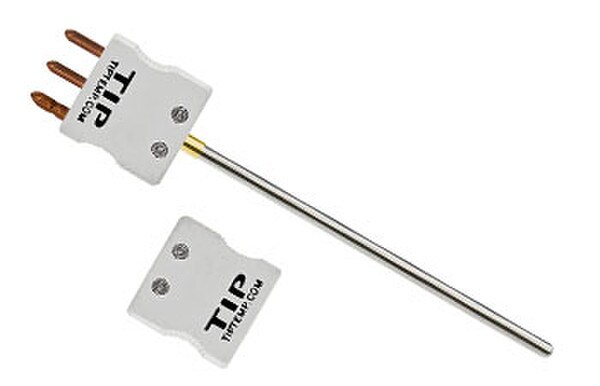

Quick-disconnect RTD temperature sensor with stainless steel sheath

──────────────────────────

Quick Specs

🌡 Max Temperature: 1202°F / 650°C
⚪ Sensor Type: RTD (100Ω)
🔩 Sheath Material: Stainless Steel
📏 Sheath Diameter: 1/8"
📐 Sheath Length: 6"
🔌 Connection Style: Quick Disconnect
🏷️ SKU: TIPRTD014P06 - RTD10-100H-SS-18-6
🔧 Customization: Available upon request

Customize Your RTD Temperature Sensor

──────────────────────────

📦 Browse the related products below, explore compatible connectors, extension cables, and mounting accessories that integrate with this model.


🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP for expert guidance.

Notable Features

Back

Details

✅ Quick-disconnect configuration for easy replacement
✅ 1/8" stainless steel sheath for durability
✅ High-temperature capability up to 650°C
✅ Ideal for industrial process monitoring
✅ Customizable configurations available
✅ Compatible with most RTD monitoring instruments

──────────────────────────

RTD10-100H-SS-18-6 Quick release 3 wire RTD sensors stainless steel sheath 1/8" dia. x 6" inches long. Fitted with large three pin plug & jack. Special Order: Terms & Conditions Apply.

Back

Specs

Temperature Accuracy: +/- 1°F (+/- 0.5°C) typical
Thermocouple Type: RTD
Sheath Material: Stainless Steel
Sheath Diameter: 0.125
Sheath Length: 6"
Plug Size: Large 3 PIN
Jack Size: Large
Max Temp: 1202°F(650°C)
