⚫ Type "J" Duplex Thermocouple

(0)No Reviews yet
$140.95
QuantityPrice
1 – 9$140.95
10 – 24$133.90
25 – 49$126.86
50 – 74$119.81
75 – 99$116.28
100 +$112.76
SKU: TIPTCJ353

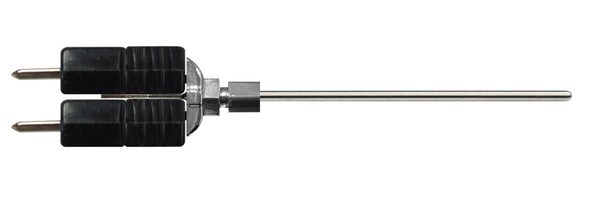

Quick Disconnect Type “J” Duplex Thermocouple

Reliable dual-sensor Type J thermocouple for precise, fast-response temperature monitoring up to 825°F.

Quick Specs

🌡 Temperature Range: Up to 825°F (440°C)
🎯 Accuracy: ±4°F (±2°C) typical
⚙️ Thermocouple Type: Type J (Duplex)
🔩 Sheath Material: Stainless Steel
📏 Sheath Diameter: 0.062" (1/16 in)
📐 Sheath Length: 12 inches
🔌 Connector Type: Large Style Quick Disconnect Plug
⏱ Response Time: ≈ 10 seconds
⚡ Time Constant: ≈ 2 seconds
📈 Number of Measuring Points: Two (duplex junctions)
🧾 Model Code: TC11-JJ-SS-116-G-12

📦 Complete your setup — explore compatible extension wires, connectors, and temperature controllers below.

🛒 Add to Cart Now or 📞 Call 800-TIP-TEMP for expert guidance.

Notable Features

Back

✅ Dual-sensor (Duplex) design for transmitting to separate instruments.
✅ Quick Disconnect plug for fast setup and sensor replacement
✅ Durable stainless steel sheath withstands industrial environments
✅ Type J Thermocouple output for controllers and indicators
✅ Ideal for ovens, dryers, or equipment requiring dual measurement points.

TC11-JJ-SS-116-G-12 quick disconnect type "J" duplex 316ss 1/16" diameter grounded junction 12" long

Back
Temperature Accuracy: +/- 4°F (+/- 2°C) typical
Thermocouple Type: Thermocouple
Sheath Material: Stainless Steel
Sheath Diameter: 0.062
Sheath Length: 12"
Plug Size: Large Style
Max Temp: Max Temp 825°F / 440°C
Time Constant: 2 seconds
Response Time: 10 Seconds
Number of Measuring Points: Two
Back

Type J Duplex Thermocouple 12" length, .062 Dia., Grounded Junctions
