"K" Thermocouple with SS Sheath
Details

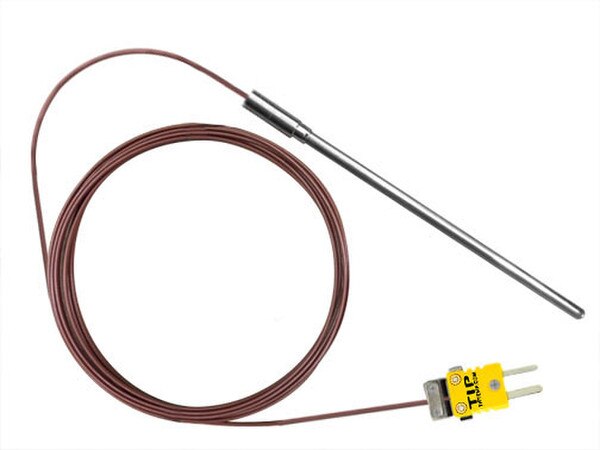

TC16-K-SS-14-G-216-TT-24-36-MM-CC no spring Thermocouple assembly, transition style type "K" calibration, 316SS sheath material 1/4" diameter, grounded junction, 216" long sheath with 12" length of Teflon insulated lead 24g wire with a mini K plug and cable clamp.
Special Order: Terms & Conditions Apply.
Special Order: Terms & Conditions Apply.
Specs
| Temperature Sensing Range: | 1690°F (920°C) |
| Temperature Accuracy: | +/- 4°F (+/- 2°C) typical |
| Weight: | .007 |
| Thermocouple Type: | Thermocouple |
| Sheath Material: | Stainless Steel |
| Sheath Diameter: | 0.250 |
| Sheath Length: | 216" |
| Transition Diameter: | 0.375" |
| Transition Length: | 1.0" |
| Wire Material: | Teflon |
| Wire Gauge: | 24 |
| Wire Length: | 12" |
| Plug Size: | Mini Male Attached |
| Max Temp: | 1690°F (920°C) |
