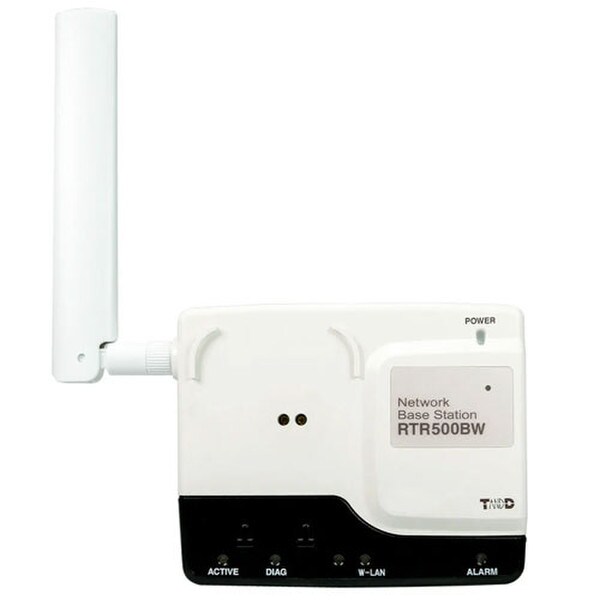

RTR-500BW Network Base Station

(0)No Reviews yet
1 – 9$446.50
10 – 24$424.18
25 – 49$401.85
50 – 74$379.53
75 – 99$368.36
100 +$357.20
Provided: Each
Wireless & Wired Ethernet LAN Data Collector
Built-In Contact Closure for use with Alarm Light
Communicates with up to 50 Remote Sensors

Notable Features

The TandD RTR500BW base station is part of the RTR500B series of wireless monitoring systems which allows you to mix and match a wide array of wireless data loggers with various base stations and data collectors to meet your needs. The RTR500BW is a network base station that features wired Ethernet and WIFI connectivity. Data is received from up to 50 compatible RTR500B/RTR-500 series wireless data loggers (sold separately). Data collected from the loggers can be sent to your local network or to the free TandD WebStorageService cloud-based service. Setup can be completed through the PC software or by using T&D 500B utility which is a mobile device app. The RTR500BW can be configured to send out email notifications if an alarm event has occurred as well as various reporting options. The RTR500B series of devices are an ideal solution for remote monitoring and data collection in a wide variety of applications, such as museums, art galleries, schools, and other commercial properties. A complete system requires one base station and at least one compatible RTR500B or RTR-500 series data logger.
  • Part number TADREC100
  • Wired LAN RJ45 Connector 100Base-TX/10Base-T AutoMDI/MDI-X Functions Auto Downloading of Recorded Data (E-mail or FTP)
  • Current When ON: Less Than 0.1 Amps
  • Humidity: 20 to 80% RH (No Dew Condensation) Weight 130 grams (4.59 oz.) - Includes Antenna Dimensions 8.3cm x 10.2cm x 2.8cm (3.27" x 4.02" x 1.1")
  • Resistance when ON: 15? Input Terminal Internal Pull-up: 3 Volts 100 k?
  • Maximum Input Voltage: 30 Volts
  • Antenna Length: 8.73cm (3.4") Contacts (Warnings Output/Input) Output Terminal Voltage When OFF: DC Less Than 50 Volts
  • Wired Ethernet Cabling over Existing LAN LED Indicators Green: Power Orange: Error Red: Alarm
  • Software Compatibility Windows 7 (32/64bit); Vista (32bit); XP-SP2+ (32bit)
  • Operating Environment Temperature: 10°C to 60°C
  • RTR-500BW
  • Antenna & Software CD
  • Built-In Contact Closure ( for option alarm light)
  • USB Cable & User Manual
  • AC Adaptor

A Complete System Requires a Base Collector (RTR500DC, RTR500BC, RTR500BW or RTR500MBS-A) and a RTR500B Series Wireless Data Logger

Remote Units: Up to 50 units
Repeaters: Up to 10 units per Group
Number of Groups: Up to 10 Groups

Remote Unit Measurement Warnings Types:
  • Remote Unit Wireless Communication Error Warnings
  • Remote Unit Battery Level Warnings
  • Remote Unit Sensor Abnormality Warnings
  • Base Unit External Power Loss Warnings (only when batteries are installed)
  • Base Unit Battery Level Warnings / Base Unit External Contact Input Warnings
