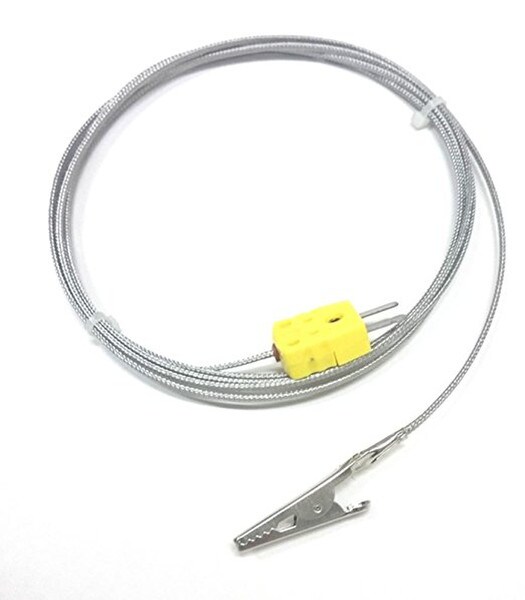

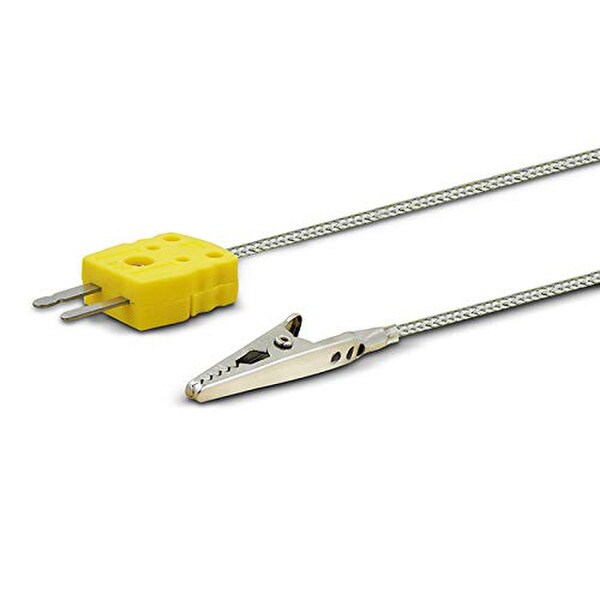

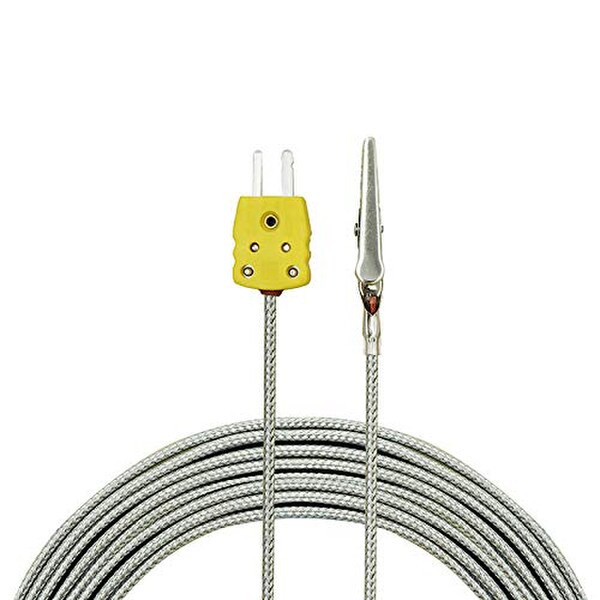

🟡 Alligator Clip Type “K” Thermocouple
Details
The alligator clip K thermocouple allows quick and easy temperature measurements of a variety of surfaces. They make direct contact for fast response. Caution should be used when connecting to powered devices.
Key Features
✅ Alligator clip tip ensures secure contact on flat or irregular surfaces
✅ Type “K” thermocouple — reliable and accurate across a wide range
✅ Designed for industrial, automotive, and R&D environments
✅ Fast thermal response with durable stainless steel overbraid protection
✅ Extended 78" cable for flexible positioning and reach
✅ Compatible with handheld thermometers and data loggers
Specs
| Temperature Sensing Range: | -40° ~ 932°F ( -40° ~ 500°C ) |
| Temperature Accuracy: | +/- 4°F (+/- 2°C) typical |
| Sensor Wire Length: | 200cm / 78" |
| Weight: | .10 |
| Calibration Available: | Yes (purchased separately) |
| Thermocouple Type: | Thermocouple |
| Wire Material: | SSOB Fiberglass |
| Wire Gauge: | 24 |
| Wire Length: | 200cm/ 78" |
| Plug Size: | Minature |
| Max Temp: | 932°F / 500°C |
