🔵 Cryogenic Type "T" Thermocouple
✅ High-accuracy Type T thermocouple sensor
✅ Fast 0.5 second response time
✅ Teflon insulation rated to 400°F (204°C)
✅ 30 AWG lightweight flexible construction
✅ Preferred for cryogenic and medical applications
✅ Custom configurations available upon request
──────────────────────────
1TC-30-TT-72-T-6

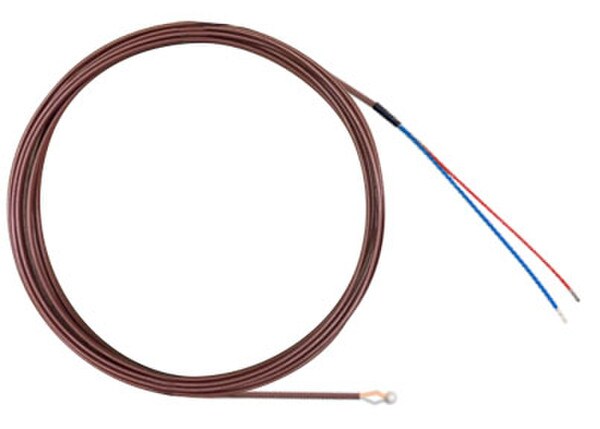

Exposed juntion type T thermocouple, 30 gage teflon insulated wire 72" long with stripped leads.
Call for custom modifications: 1-800-TIP-TEMP ( 847-8367 )
| Type of Sensor: | Thermocouple |
| Temperature Sensing Range: | 400°F (204°C) |
| Temperature Accuracy: | +/- 1°F (+/- 0.5°C) typical |
| Weight: | 0.02 |
| Calibration Available: | Yes (purchased separately) |
| Special Notes: | FEP Teflon |
| Thermocouple Type: | Thermocouple |
| Wire Material: | Teflon |
| Wire Gauge: | 30 |
| Wire Length: | 72" |
| Max Temp: | 500°F (260°C) |
| Stripped Leads Length: | 1.5" |
| Time Constant: | .1 second |
| Response Time: | .5 seconds |
| Number of Measuring Points: | 1 |
- "T" Wire Thermocouple 72" Length
- 30 Ga. Wire
- Stripped Leads
- Expert Technical Support
