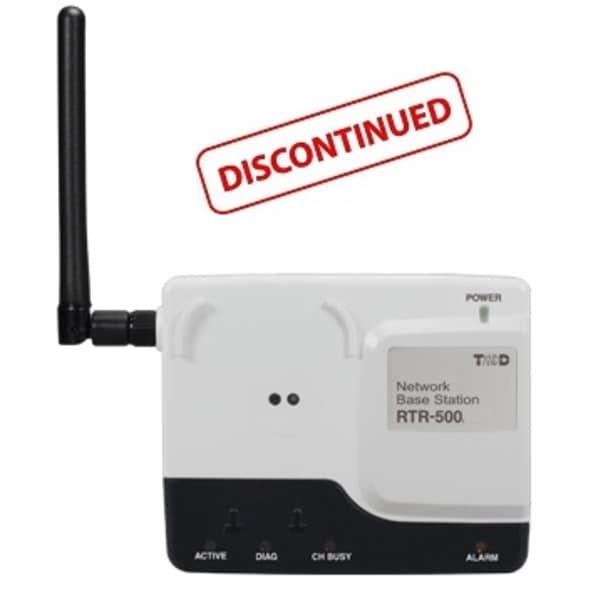

RTR-500NW Network Base Station
Connects to Internet Using Existing Wired LAN and Transmits Logged Data to Email, FTP or TandD Server Collects Measured Readings from Repeaters and RTR-500 series Wireless Loggers Alarm Notifications Are Sent to Email via Automatic Transmission of Data (Current or Logged) at Set Interval Optional External Input and Output Contacts for Alarm Warning Systems Includes Settings Utility Software and Graphical View Software Includes Antenna, Software, USB Cable, LAN Cable and User Manual
Note: This device does not currently support SSL/TLS for the sending of emails. Please check with your IT department to see if your email server will be compatible.
- Part number TADREC006
- Wired LAN RJ45 Connector 100Base-TX/10Base-T AutoMDI/MDI-X Functions Auto Downloading of Recorded Data (E-mail or FTP)
- Current When ON: Less Than 0.1 Amps
- Humidity: 20 to 80% RH (No Dew Condensation) Weight 130 grams (4.59 oz.) - Includes Antenna Dimensions 8.3cm x 10.2cm x 2.8cm (3.27" x 4.02" x 1.1")
- Resistance when ON: 15? Input Terminal Internal Pull-up: 3 Volts 100 k?
- Maximum Input Voltage: 30 Volts
- Antenna Length: 8.73cm (3.4") Contacts (Warnings Output/Input) Output Terminal Voltage When OFF: DC Less Than 50 Volts
- Wired Ethernet Cabling over Existing LAN LED Indicators Green: Power Orange: Error Red: Alarm
- Software Compatibility Windows 7 (32/64bit); Vista (32bit); XP-SP2+ (32bit)
- Operating Environment Temperature: 10°C to 60°C
- RTR-500NW
- Antenna & Software CD
- Built-In Contact Closure ( for option alarm light)
- USB Cable & LAN Cable
- AC Adaptor
Remote Units: Up to 100 units
Repeaters: Up to 10 units per Group
Number of Groups: Up to 10 Groups
Remote Unit Measurement Warnings Types:
Repeaters: Up to 10 units per Group
Number of Groups: Up to 10 Groups
Remote Unit Measurement Warnings Types:
- Remote Unit Wireless Communication Error Warnings
- Remote Unit Battery Level Warnings
- Remote Unit Sensor Abnormality Warnings
- Base Unit External Power Loss Warnings (only when batteries are installed)
- Base Unit Battery Level Warnings / Base Unit External Contact Input Warnings
