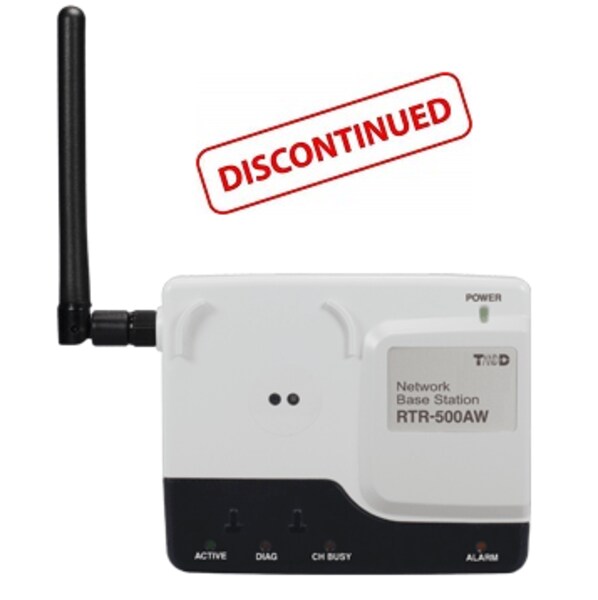

RTR-500AW Data Collector
The TandD RTR-500AW Network Base Station At the set interval can communicate via wireless communication to collect recorded data or current readings from Remote Units and send the received data via FTP, e-mail to a set address, or send it to our "T&D WebStorage Service".
After having made initial settings you wish to add a new Remote Unit or change the registration info of a Remote Unit, it can be done easily by sending the settings info to the RTR-500W over the network. There is no need to retrieve the RTR-500W from its location to make these changes.
If and when a measurement exceeds the set Upper or Lower Limit or if an abnormality occurs in the Remote Unit the RTR-500W will go into "Warning" mode whereby the ALARM LED and the external contact output will be switched ON. In addition, a warning report e-mail can be sent.
Note: This device does not currently support SSL/TLS for the sending of emails. Please check with your IT department to see if your email server will be compatible.
- Part Number TADREC007
- Automatically download and send data
- Register remote units and change settings via the network
- Array of warning monitoring functions
- Simultaneous management of multiple remote units
- Communication interface: USB optical communication wired LAN
- Communication range: 150 meters (500ft) if unobstructed
- RTR-500AW
- Antenna & Software CD
- USB Cable
- Built-In Alarm Contact Closure
- AC Adaptor
- Expert Technical Support
Remote Units: Up to 100 units
Repeaters: Up to 10 units per Group
Number of Groups: Up to 10 Groups
Remote Unit Measurement Warnings Types:
Repeaters: Up to 10 units per Group
Number of Groups: Up to 10 Groups
Remote Unit Measurement Warnings Types:
- Remote Unit Wireless Communication Error Warnings
- Remote Unit Battery Level Warnings
- Remote Unit Sensor Abnormality Warnings
- Base Unit External Power Loss Warnings (only when batteries are installed)
- Base Unit Battery Level Warnings / Base Unit External Contact Input Warnings
