32E High-Limit Temperature Controller

(0)No Reviews yet
Provided: Each
Compact 1/32nd DIN Autotune & PID
Programmable for 9 Thermocouple & RTD/PT100 Inputs

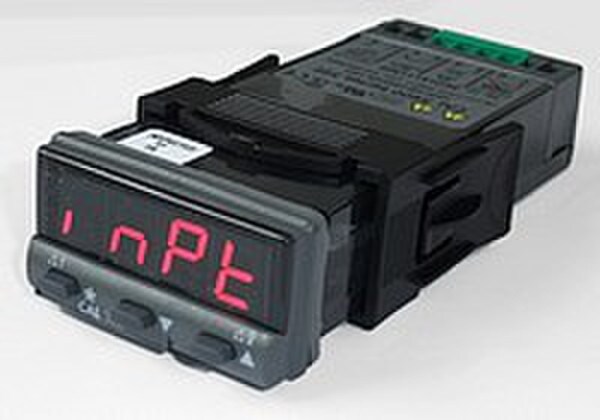

The CAL 32E Limit Controller is an easy-to-use,
inexpensive, and reliable temperature controller.
CE UL & CSA approvals

Notable Features

1/32 DIN Economy Temperature Controller, 100 to 240 VAC, SSR Driver and Relay Outputs, Red LED

The CAL 32E is an economy version of the CAL 3200, featuring CAL's auto-tune function, which makes P.I.D. control simple by automatically selecting the optimum P.I.D. values. The CAL 32E accepts nine common thermocouple types as inputs, as well as 2-wire RTDs, and has SSR Driver and Relay outputs.

  • Ultra-Compact Size: 24mm x 48mm
  • Depth Behind Panel: 110mm
  • Weight: 0.3 ounces
  • Orientation: Horizontal
  • Autotune PID for easy set-up
  • Scale: °F and °C
  • Dual-output: 2A relay plus SSR drive
  • IP65/ Nema 4X sealed fascia
  • CE UL & CSA approvals
  • 3-year warranty
  • 5 alarm modes
  • 9 thermocouples RTD/PT100 inputs
  • removable rear screw terminal block
  • Sensor Input: Thermocouple RTD Linear milliamps Linear volts millivolts
  • Output: 2x Change-over Relay
  • (1) 1/32nd DIN Temperature Controller
  • Expert Technical Support
